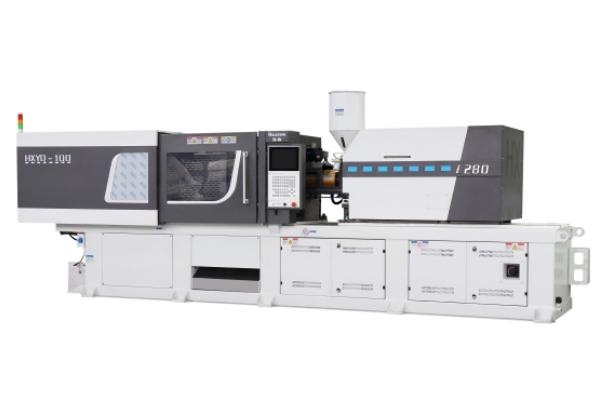

Oil-electric compound injection molding machine
HXYD series hybrid injection molding machine ine is the perfect combination of the excellent performance of fulHXYD series hvbrid iniection molding macrlectric iniection molding machine and the hyorau ic crive unit with high efficiency ang ow energy consumrtion by Haixiong Company, which is market oriented and launched to meet the application needs of customerfor iniection molding machines in mu tinle directions .t has high hvorau ic c amping force. hvoraulic eiectioand hydraulic core puller while having precise,efficient and fast response electric injection performance. lt is 2masterpiece of the integration of electric injection technology and hydraulic injection technology.
Modular Iniection Unit with ExcellentAcceleration Performance
High-stiffness Clamping Unit for High-speed machine
Hydraulic System with High Responseand Low Noise
Optimized Control System Excel-lent in Response and Accuration forHybrid Machine
LAMPING UNIT
The platen optimized by finite element analysis has the characteristics of high rigidity and high strength.And the feet slip structure of movable platen is new designed oblique-wedge.ltincreases the support area and makes the point forward.While loading the mold.it can effectively keep the parallel precision of the mold-plate
With optimized design of bent elbow connecting rod clamping structure, it has a smooth movement curve.With higher strength design, it makes the unit run steadily and have alonger service life.
Adopt digital communication non-contact displace-ment sensor for mold open/clamp.which has feature oore fast and stable, higher accuracy of position measurement and higher precision of repetition.
NIECTING UNIT
The symmetrical double-seat oil cylinder-movingstructure eliminates the moment acting on the fixeplaten, making the contact between the nozzle anothe mold more reliable than the electric structure
The structure of the injection unit is optimized torealize the high-frequency response characteristics oinjection and precise control of each action othe tiochinensue ho'aing and back pressure. Makhigh repeatability and long service life.
The injection response is more fast under load, thellent. Quickeacceleration pertormance is more excinjection acceleration can make molding more easily.
YDRAULIC R
CONTROL SYSTEM
