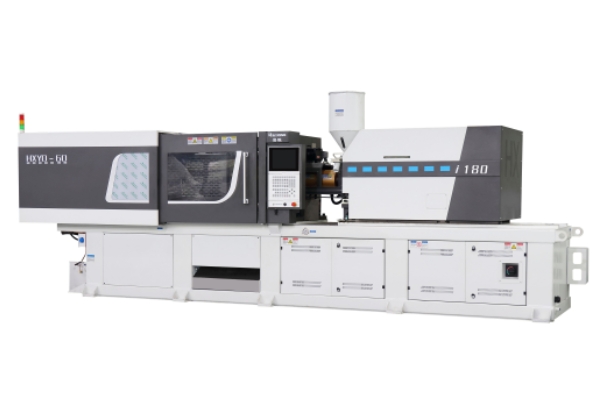

Oil-electric compound injection molding machine
LAMPING UNIT
The platen optimized by finite element analysis has the characteristics of high rigidity and high strength.And the feet slip structure of movable platen is new designed oblique-wedge.ltincreases the support area and makes the point forward.While loading the mold.it can effectively keep the parallel precision of the mold-plate
With optimized design of bent elbow connecting rod clamping structure, it has a smooth movement curve.With higher strength design, it makes the unit run steadily and have alonger service life.
Adopt digital communication non-contact displace-ment sensor for mold open/clamp.which has feature oore fast and stable, higher accuracy of position measurement and higher precision of repetition.
NIECTING UNIT
The symmetrical double-seat oil cylinder-movingstructure eliminates the moment acting on the fixeplaten, making the contact between the nozzle anothe mold more reliable than the electric structure
The structure of the injection unit is optimized torealize the high-frequency response characteristics oinjection and precise control of each action othe tiochinensue ho'aing and back pressure. Makhigh repeatability and long service life.
The injection response is more fast under load, thellent. Quickeacceleration pertormance is more excinjection acceleration can make molding more easily.
YDRAULIC R
CONTROL SYSTEM
lt adopts the special control system of electricity and oil hybrid machine anrealizes the closed-loop control and data sharing of the computer controller, serv!driver and servo motor by Ether CAT bus cocation. The control systesupports real-time energy consuption monitoring and single product energption.
